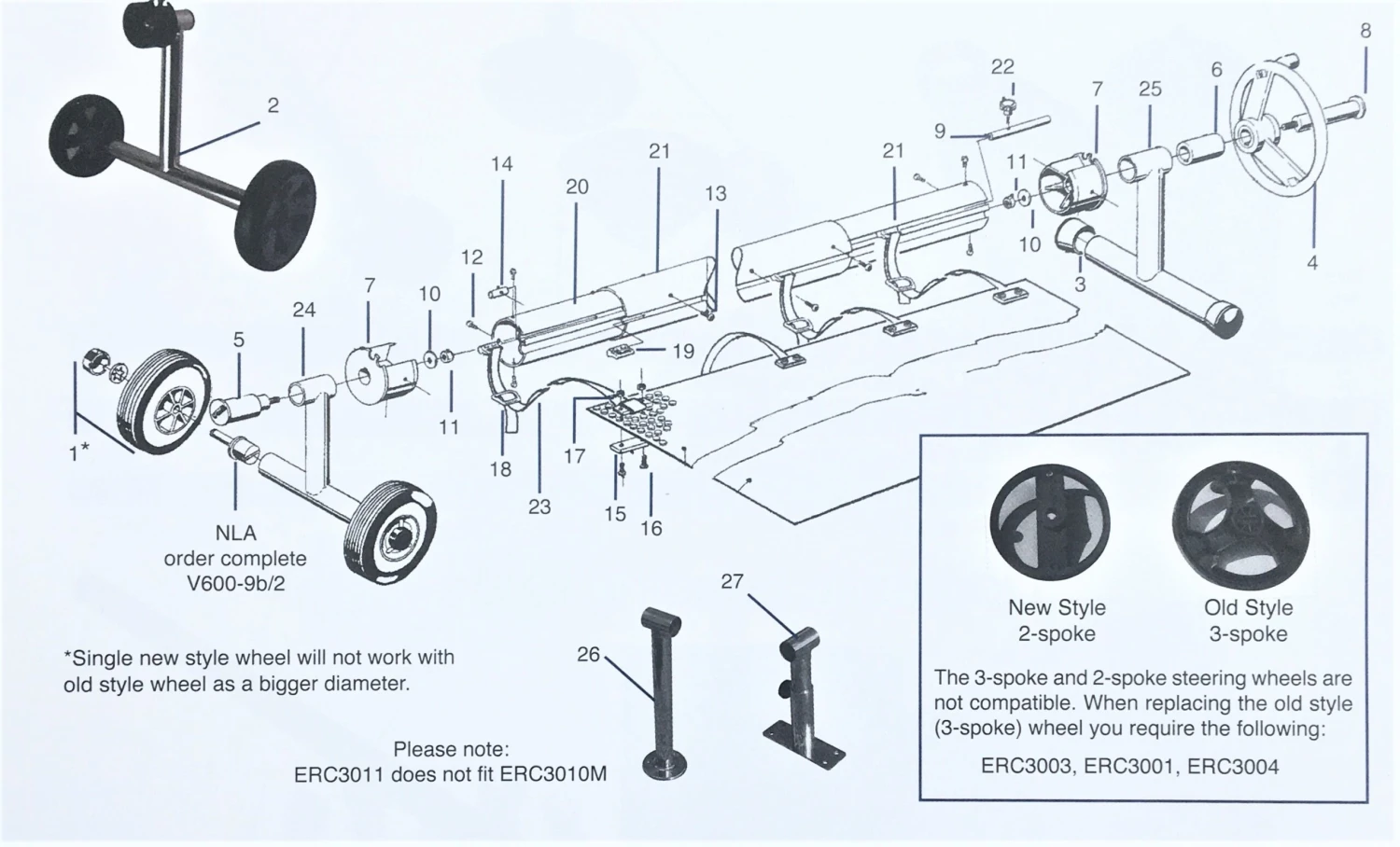

Premium Reel System Parts

1. Wheel Assembly single (new style*), 2. End Stand c/w 2 wheels and end boss assembly, 3. End Cap, 4. Hand Wheel, 5. Bearing Short, 6. Bearing Sleeve (machined) outside diameter 30.6mm, inside diameter 20mm, 6. Bearing Sleeve (white) outside diameter 31.6mm, inside diameter 20mm, 8. Bearing Long, 9. Brake Rod (plastic), 10. Washer, 11. Nut, 12. Screw, 13. Brass Insert Screw (for ERC3014), 14. Stainless Nut (replaces Brass Insert), 15. Plastic Strap Clamp, 16. Strap Clamp Screw, 17. Strap Clamp Nut, 18. Strap Buckle, 19. Plastic Strap Insert, 20. Tube Inner 1.85m, 21. Tube Outer 2.7m, 22. BrakeScrew, 23. Strap, 24. End Stand Wheel Assembly Side (SS only), 25. End Stand Steering Wheel Assembly Side (SS only), 26. Above Ground End Stand Circular (SS only), 27. Above Ground End Stand T (SS only), Strap Kit (7 straps) Each strap is 1.5m in length, 7. End Boss
