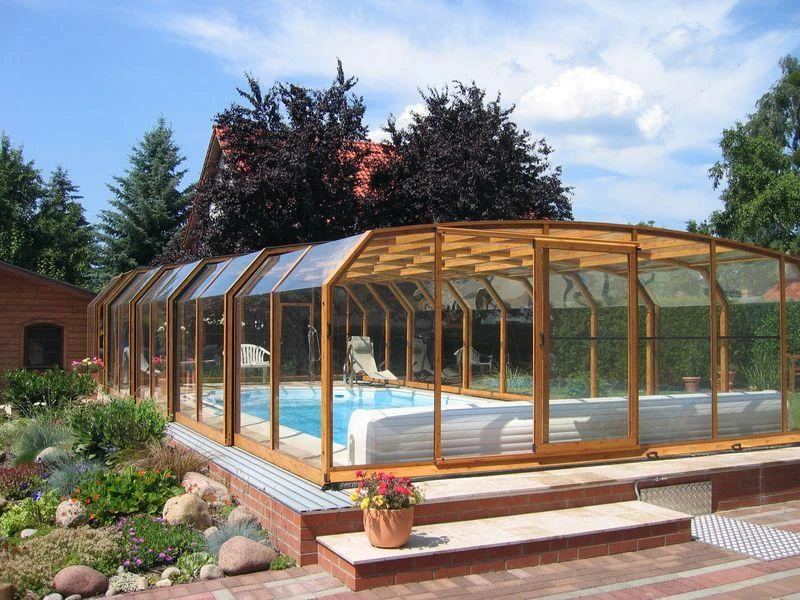

IPC Oceanic – High Version Swimming Pool Enclosure

Full

This cover is simply ideal for customers who prefer traditional shape but up-to date solution for their pool. Thanks to the flat rail system (we use one rail along the whole length of the enclosure for each segment – that way you can move all segments both direction absolutely independently). What is also unique about this enclosure is the way how we crease the polycarbonate in sides – much more attractive look than using bars.

Technical parameters

• Width of enclosure:4,00 – 8,00 m
• Length of enclosure:4,31 – 17,00 m
• Height of enclosure:2,08 – 2,84 m
• Number of segments:2 – 8



Profile surfacing:
Silver RAL 9006	White RAL 9010	Beige RAL 1015	Anthracite DB 703	Brown antique



Polycarbonate:
		compact, transparent, 4 mm with both-sides UV protection, U=5,4 W/m² K



twin-wall, transparent, 8 mm NO DROP, with one-side UV protection in roof, U = 3,3 W/m2 K



Guide rails:
guide rails in the full length of an enclosure
		PROGRES – height 15 mm, surfacing – natural elox or beige RAL 1015



• the front face made from polycarbonate and aluminium profiles
• 1 door according to the client´s request
• draft seal on faces up to the height of 150mm
• automatic locking system of segments PROGRES

Material	Aluminium, Polycarbonate
Products categories	Pools, Spas, Enclosures, Domes
