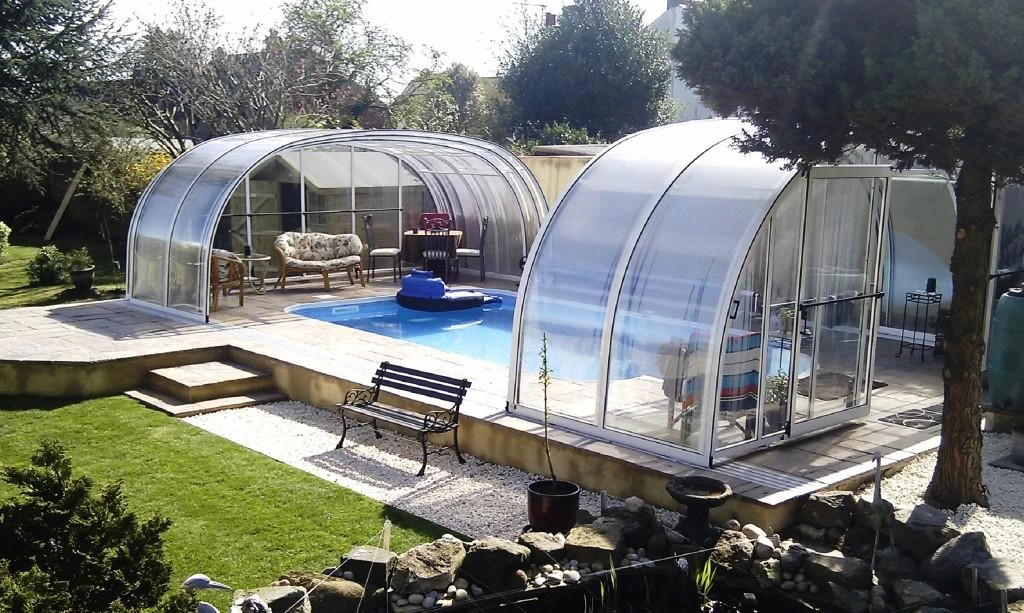

IPC Laguna Swimming Pool Enclosure

Full



LAGUNA ENCLOSURE – P.O.A.



STANDARD FEATURES

 Surface of Profiles:

• Colours : Silver, White, Beige, Anthracite

 Polycarbonate:

• Twin-wall semi-transparent, thickness 10mm, UV protection on one side, U = 3,1 W/m² K

 Leading Lines

• STANDARD – Profile 4m – 6.25m (50 x 38mm) height 28mm, natural elox or powder painting in beige colour
• PROGRES – Profile 6.5m – 9m (60 x 63mm) height 15mm, natural elox or beige

 Leading Lines in the Length of the enclosure

 The front and back face made from aluminium profiles and polycarbonate

 1 Door according to the client’s request

 Draft seal on faces up to height 150mm

 Automatic locking system of segments, type STANDARD



PREMIUM FEATURES

 The whole enclosure can be manufactured from the following types of polycarbonate

• Polycarbonate 10mm, quad-wall, semi-transparent with UV protection on one side, U = 2,5 W/m² K – add 10% to Basic price
• Polycarbonate 10mm, twin-wall, light blue with UV protection on one side, U = 3,1 W/m² K – add 8% to basic price
• Polycarbonate 10mm, twin-wall, Green with UV protection on one side, U = 3,1 W/m² K – add 8% to basic price
• Polycarbonate 10mm, twin-wall, Smoked with UV protection on one side, U = 3,1 W/m² K – 8% to basic price
• Polycarbonate 4mm, compact,  transparent with UV protection on both sides, U = 5,4 W/m² K – add 17% to basic price

 Combination of a compact polycarbonate 4mm and a twin-wall polycarbonate, transparent

• Polycarbonate 4mm in the front and back face, polycarbonate 10mm in lateral sides and roof – add 6% to basic price
• Polycarbonate 4mm in the front and back face and sides up to 2100mm of arch, polycarbonate 8mm in roof – add 15% to basic price

Wood imitation of aluminium profiles

• Wood imitation – add 20% to basic price

Leading Lines

• automatic anchoring system COMFORT including system CATUS – add 4% to basic price

PREMIUM FEATURES – Price per 1 piece

• Extra door in face, sliding or opening  +£206
• Double shifting, opening door  +£297
• Lateral door  +£206
• Ventilating door  +£82
• Lift up part in face; another face modifications  +£181-£239
• Lockable handle  +£17
• Lift up draft seal  +£21 per m
• Sealing brush on faces 4, 6, 8, 10cm  +£6 per m
• Sealing brush on faces 12, 15cm  +£7.50 per m
• Safety lock of the pool enclosure  +3%

Heightening of an enclosure

• Heightening up to 100mm  +Free
• Heightening for every additional 100mm  +3%
