IPC Grand Sunhouse

Full

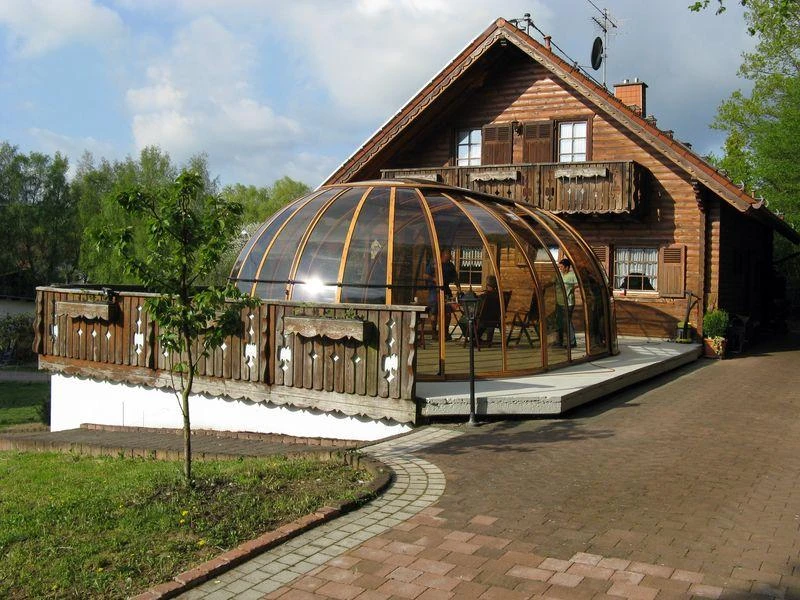

It is fitted with a movable partial roof opening and two sliding doors. The model consists of two semi-domes on either end (basically, a halved ORLANDO^® model), two classic enclosure segments with sliding doors laterally and with a partially movable rooftop opening to ensure better ventilation. The double-winged sliding door is mounted to one of the two end section semi-domes. It facilitates the moving about of a spa and other objects while also serving as the main entrance to the enclosed area. The version manufactured with tinted (smoke-colored) polycarbonate glazing substantially reduces the sunlight‘s glare, creates an environment that is easy on one‘s eyes, and helps to maintain a comfortable indoor temperature. The structural components used in both enclosure versions guarantee not only simple and practical assembly, but also make for low maintenance.

Technical parameters

• Width of enclosure:5,00 m
• Length of enclosure:8,00 m
• Height of enclosure:2,70 m
• Weight:600 kg
• Double door width:3,0 m



Profile surfacing:
Silver RAL 9006	White RAL 9010	Beige RAL 1015	Anthracite DB 703	Brown antique



Polycarbonate:
	compact, transparent, 3 mm, with UV protection
	compact, brown, 3 mm, with UV protection
	compact, structured 3 mm, with UV protection



2 types of doors:



• 2 x double-wing
• 2 x single-wing



Locking system:



• door locking system from the outside

Spas	Swim Spas, In-Ground, Portable, Hot Tubs
Material	Aluminium, Polycarbonate
Products categories	Pools, Spas, Domes , Enclosures
