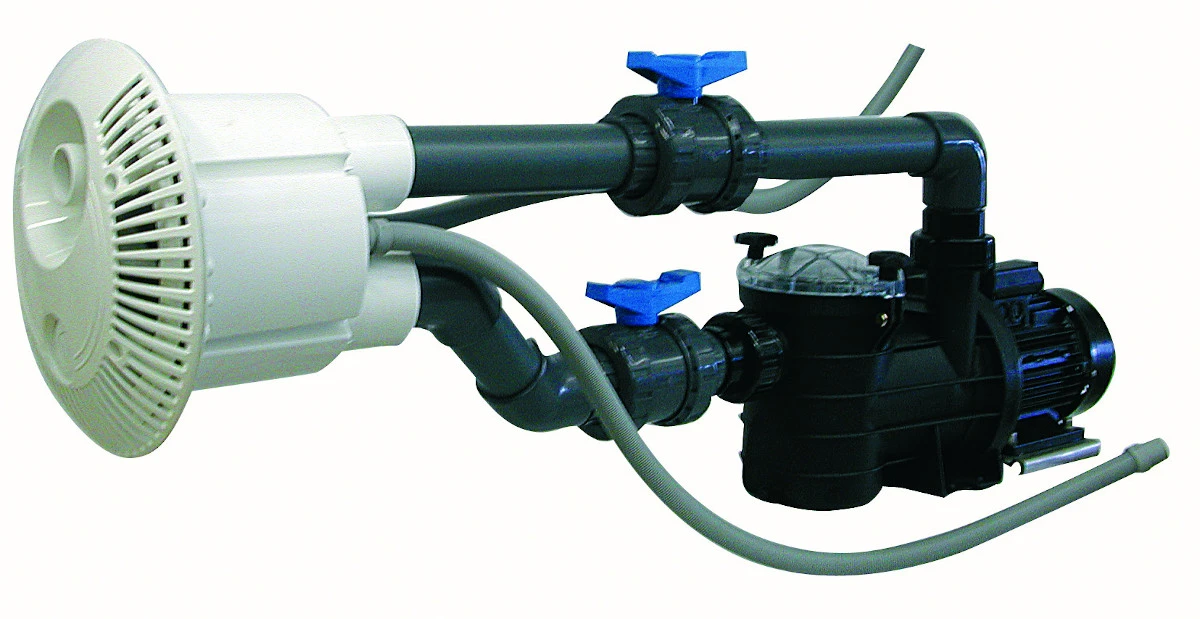

Certikin Counter Current Unit

Full

Discover a new way to enjoy your pool – and excercise at the same time! The Certikin Counter Current system is especially designed with small private pools in mind. With a Counter Current installed in your pool you can swim as far as you like.

The system is equipped with a 3HP pump to create a counter-stream of water which allows you to swim on the spot. The adjustable current means that swimmers of all levels can swim at their own pace for as long as they like. The directional inlet allows a 15 -degree inclination in any direction and also features an adjustable air/water mixer for a relaxing bubble massage effect.

INCLUDED

– Faceplate assembly & housing with jet

– On/off controls

– 3 HP pump (1 or 3 phase) with connection accessories (2 x elbows, 2 x valves – pipework not included)

– Control box to activate the pump via the controls on the faceplate

– Air suction connection 20mm – includes air button 2 x 3.5 with flexible pipe (2 x 3.5)

– Includes directional inlet 41mm, which allows a maximum of 15 degrees as well as water and air regulation

SPECIFICATIONS

– Flow Qmax – 40m3/h

– Pump Capacity – 3HP

– Electrical requirements – 220v or 380v

– Water return connection – 90mm

– Water impulsion connection – 75mm

– Air tube connection – 20mm

– Flexible Pipe – 2 x 3.5

– Adjustable jet – 41mm

– Max. angle adjustment of jet – 150

INSTALLATION

The housing should be installed during pool construction. The Swimfit Counter Current can be purchased in component form as follows;

A – Faceplate assembly & housing

B – Pump kit

C – Control box

Only the faceplate assembly & housing is required at the pool construction phase, which means that, for a relatively low cost, the pool can be constructed ready to install the complete Counter Current at a later date if required. The pump should be installed as close as possible to the pool for maximum performance (within IEE regulations)
