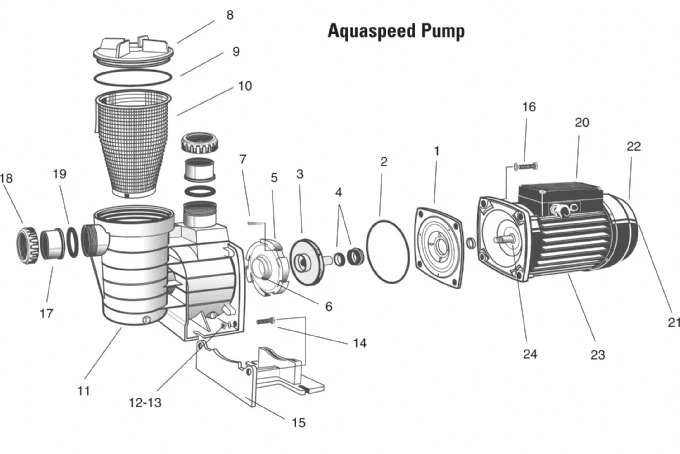

Aquaspeed Pump Spares

1. Adaptor Plate with sprung part of Mechanical seal, 2. Main Body O ring, 3. 0.5hp Impeller with ceramic part of Mechanical seal, 3. 0.75hp Impeller with ceramic part of Mechanical Seal, 3. 1hp Impeller with ceramic part of Mechanical Seal, 3. 1.5hp Impeller with ceramic part of Mechanical Seal, 3. 2hp Impeller with ceramic part of Mechanical Seal, 3. 3hp Impeller with ceramic part of Mechanical Seal, 4. Pump Seal, 5. Diffuser 0.5hp to 2hp, 5. Diffuser 2.5hp to 3.5hp, 6. Diffuser Gasket, 7. Diffuser screw 0.5hp to 2hp – self tapping, 7. Diffuser screw 2.5hp to 3.5hp – self tapping, 7. 0.5hp to 2hp Diffuser screw – Pan head, 7. 2.5hp to 3hp Diffuser Screw – Pan Head, 8. Strainer lid, 9. Stainer lid O ring, 10. Strainer Basket, 11. Drain Plug, 12. Foot M6 Nut – Stainless Steel, 13. Foot M6 Washer – Stainless Steel, 14. Foot M6 x 25mm Bolt – Stainless Steel, 16. Motor – Body washer 0.5hp – 2.5hp Hex, 16a. Motor – Body Bolt 3hp Allen Key, 19. Socket union O ring, 20. Capacitor 0.5hp (14uF), 20. Capacitor 0.75hp (20uF), 20. Capacitor 1hp – 1.5hp (25uF), 21. Motor Fan 0.5hp to 0.75hp, 21. Motor Fan 1hp to 1.5hp, 21. Motor Fan 2hp to 3.5hp, 22. Fan cover 0.5hp to 0.75hp, 22. Fan cover 1hp to 1.5hp, 22. Fan cover 2hp to 3hp, 23. 0.5hp Motor only 1 phase, 23. 0.75hp Motor only 1 phase, 23. 1hp Motor only 1 phase, 23. 1.5hp Motor only 1 phase, 23. 2hp Motor only 1 phase, 23. 3hp Motor only 1 phase
